Bag-in-Box Filler | Fully-automated BiB Filling System

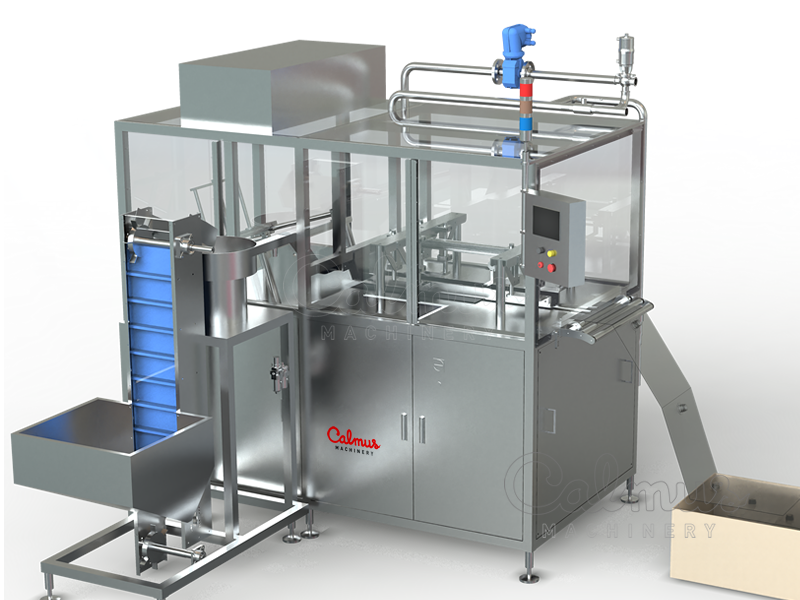

This Bag-in-Box filler is a fully-automated web-fed filling machine designed for filling spouted bags with non-food liquids, such as automotive fluids (e.g., diesel engine fluid (DEF), engine coolant, motor coolant, and windshield washer fluid). Different from regular Bag-in-Box fillers, this machine is is applicable to bags without pre-attached fitments. Fitments are fed separately and capped after filling.
This filling system features fully automated by employing a PLC and touch screen control system. The whole process of continuous bags feed, fitments feed, filling, capping, cutting apart from continuous bags and transiting to the conveyor can be completed automatically, no human operation required. This Bag-in-Box filler is designed with CIP (Clean-in-Place) function and pipeline connection.
The machine is controlled by a PLC and features a user-friendly touch-screen interface. It automates the entire process, including bag feeding, fitment feeding, filling, capping, cutting, and transferring to the conveyor. Additionally, it includes a CIP (Clean-in-Place) function and pipeline connections for easy cleaning and maintenance.
Features：
1. Fully-automated: handles continuous bag feeding, filling and capping automatically.

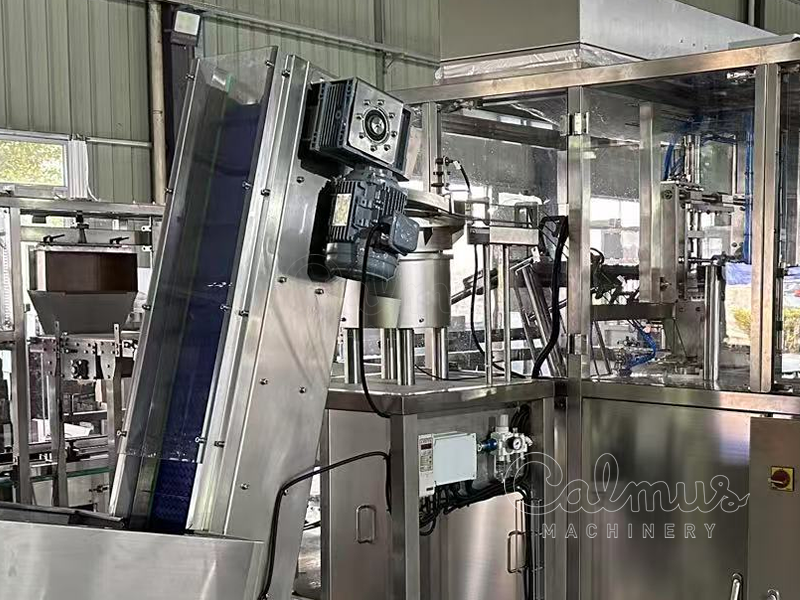

2. Separate fitment feeding: fitments are fed automatically, suitable for bags without pre-attached fitments.
3. Easy to operate: the touch-screen control system simplifies operation.
4. Precision filling: uses an electromagnetic or turbine flowmeter for accurate and consistent filling.
5. Clean air supply: an built-in air filter ensures a clean filling environment.
6. Durable construction: made with 304 stainless steel for the body and 316L stainless steel for parts in contact with liquids.
7. Flexible capacity: can handle bags from 2 to 25 liters by adjusting settings.
Specifications：

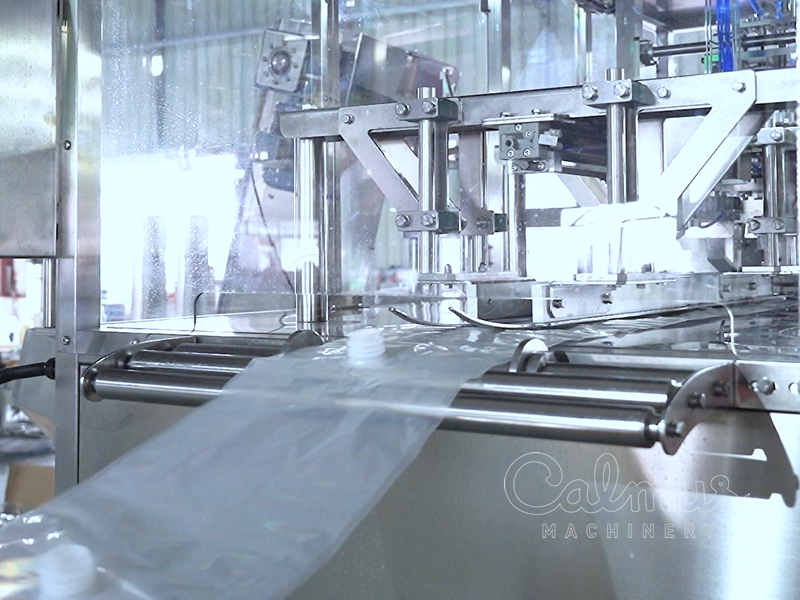

Applicable bags: pre-cut continuous module or web-type spouted bags (2-25 liters) without pre-attached fitments.
Filling capacity:
400-450 bags/hour for 5-liter bags；
360-400 bags/hour for 10-liter bags；
250-270 bags/hour for 20-liter bags。
Power supply: single-phase, 1.0 kW
Compressed air: 6-8 bar, 500 NL/min
