Poly Bag Inserter Machine | Box Lining Machine

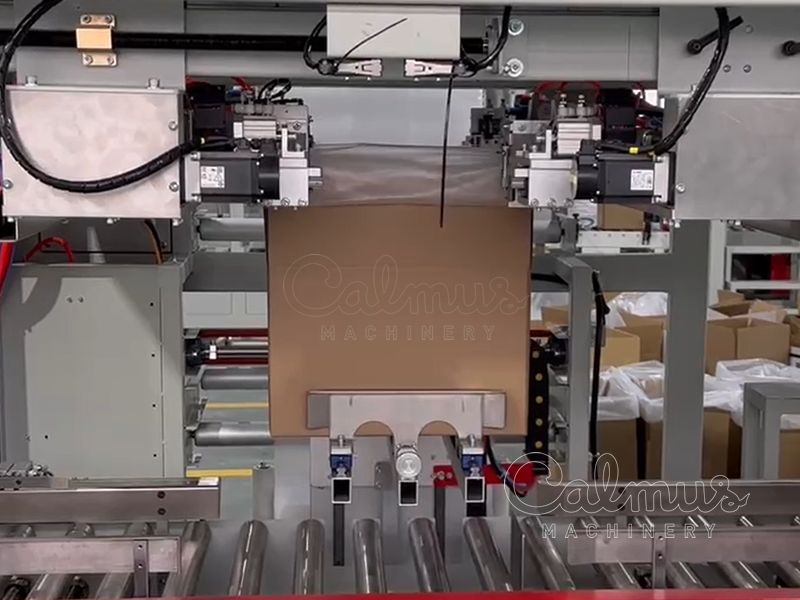

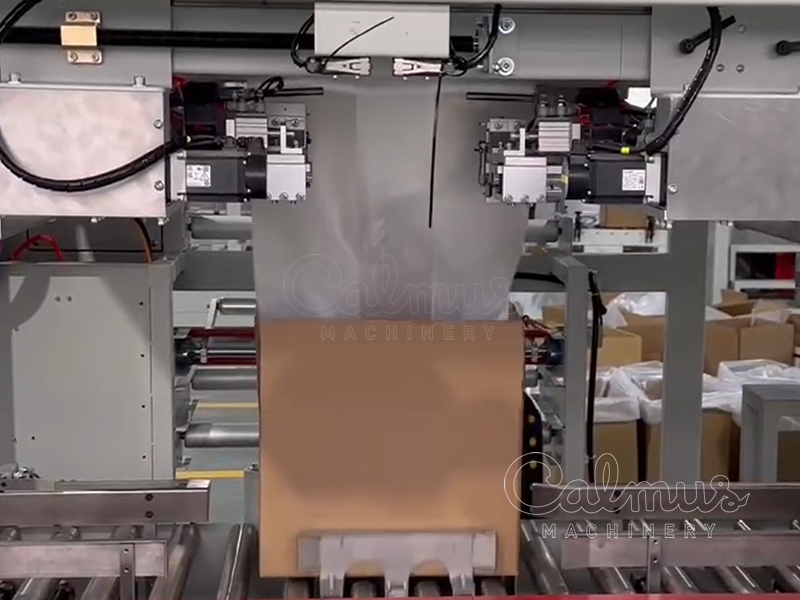

This fully-automated poly bag inserter, also known as a box lining machine or case liner placer, is designed to efficiently line boxes with one poly bag each, ready for bulk packaging. The machine dispenses film from roll stock, cuts and seals it into a bag, opens and cuffs the bag over the carton flaps, and blows air to expand the bag for a snug fit against the box internal walls. This bag inserter machine reduces labor and material costs while being simple to operate and easy to adjust.
This poly bag inserter is CE-certified and complies with machinery standards EN 12100, EN 415-10, EN 60204-1:2018, and EN 415-3.
The bag inserter machine is an ideal solution for bulk packaging of items such as bread rolls, edible oils and fats (including margarine, shortening or butter), fruits and vegetables, granules and nuts, meat and fish, caps and closures, golf balls, and more. When combined with a carton erector, this poly bag inserter becomes part of a fully automated lined-carton forming system, increasing efficiency and reducing labor requirements.
Features:
1) Fully automated, with continuous film feeding from roll stock.
2) Easy to use. The HMI control system makes operation straightforward.
3) Optional movable HMI control box, allowing operation from either side of the conveyor ine.
4) Main motion components are controlled by servo motors, with parameters adjustable via HMI settings. Users can preset different parameters for different products, reducing changeover time when switching to other sizes.
5) Integrated bag-making and bag-inserting functions, reducing costs.
6) The adjustable temperature of the heating element in the bag-making process allows for finding a reliable sealing temperature suitable for different films.
7) The air-blowing station after bag insertion helps the bags fit better to the interior of boxes.
Specifications:
Inserting capacity: 6-7 cases/min
Film width: 460–840 mm
Applicable case dimensions: L250-550 mm * W200-400 mm * H150-400 mm (customizable)
Power supply: single or 3 phase, 4.5 kW
Compressed air: 6-8 bar
Air consumption: 300 NL/min
Machine dimensions: L2,500*W1,600*H2,300mm (for reference only)
For higher productivity, we also offer a high-speed bag inserter capable of handling up to 12 cartons per minute and CE-certified.
