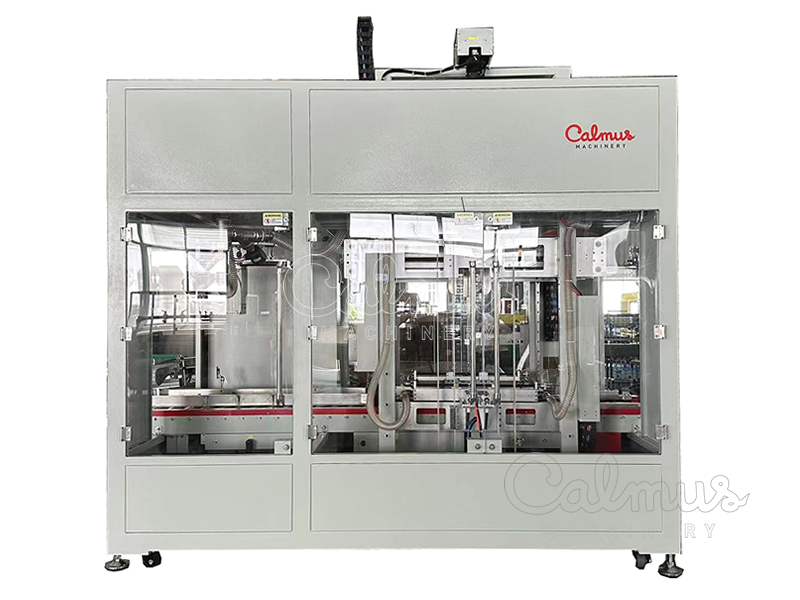

Poly Bag Uncuffer and Top Sealer

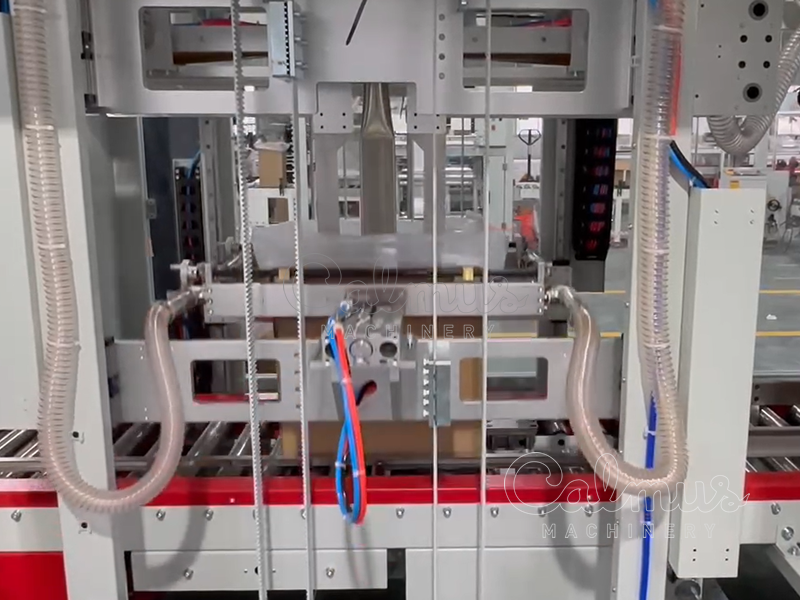

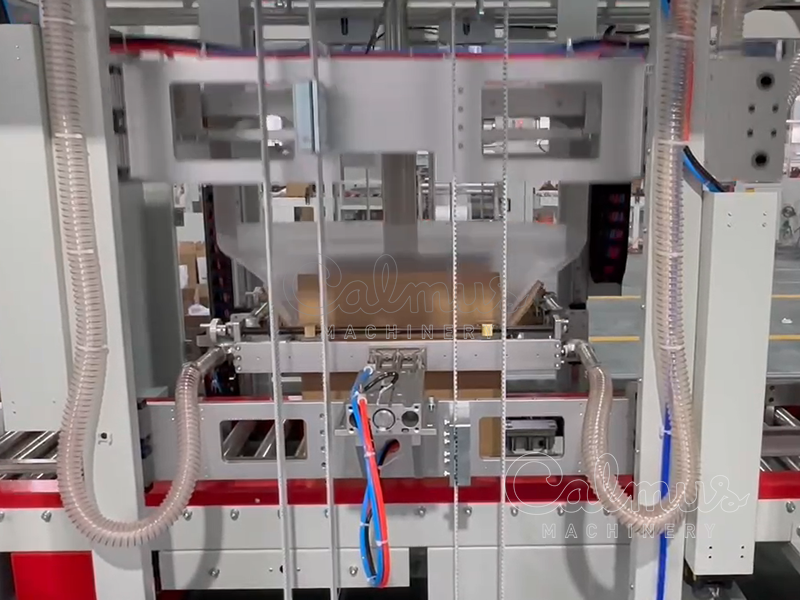

This bag uncuffer and sealer is designed to heat-seal poly bags inside boxes after products are loaded or filled. The machine uncuffs the bags from the carton top flaps, stretches the bag openings, applies a light vacuum to prevent ballooning, heat-seals the bags, and then flattens them within the carton. This bag decuffer sealer reduces labor and material costs, is simple to operate, and easy to adjust, thus promoting high efficiency and labor savings.
This bag uncuffing and sealing machine, when used with our poly bag inserter, is ideal for automatic bulk box packaging of bread rolls, edible oils and fats, fruits and vegetables,
granules and nuts, meats and fish, caps and closures, and other items.
Features:
1) Fully automated.
2) Easy to use. The HMI control system makes operation straightforward.
3) Optional mobile HMI control box, allowing operation from either side of the conveyor line.
4) Main motion components are controlled by servo motors, with parameters adjustable via HMI settings. Users can preset different parameters for different products, reducing changeover time when switching to other sizes.
5) The uncuffing mechanism includes a suction cup system, making uncuffing more reliable.
6) The flattening station after sealing helps ensure smooth sealing of boxes downstream.
Specifications:
Uncuffing and sealing capacity: 3-5 cartons/min
Film width: 460-840mm
Applicable box dimensions: L250-550*W200-400*H150-400mm, also can be customized
Power supply: single or 3 phase, 7 kW
Compressed air: 6-8 bar
Air consumption: 250 NL/min
Machine dimensions: L2,800*W1,800*H2,800 (for reference only)
We also have a poly bag inserter for lining boxes with poly bags by one each. The whole form-fill-seal box in box line is also available.
