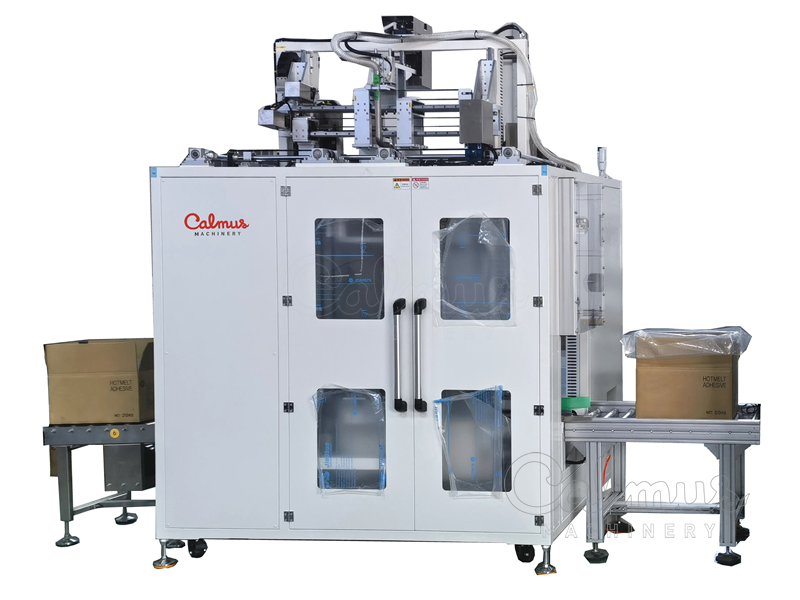

Poly Bag Uncuffer and Top Roller

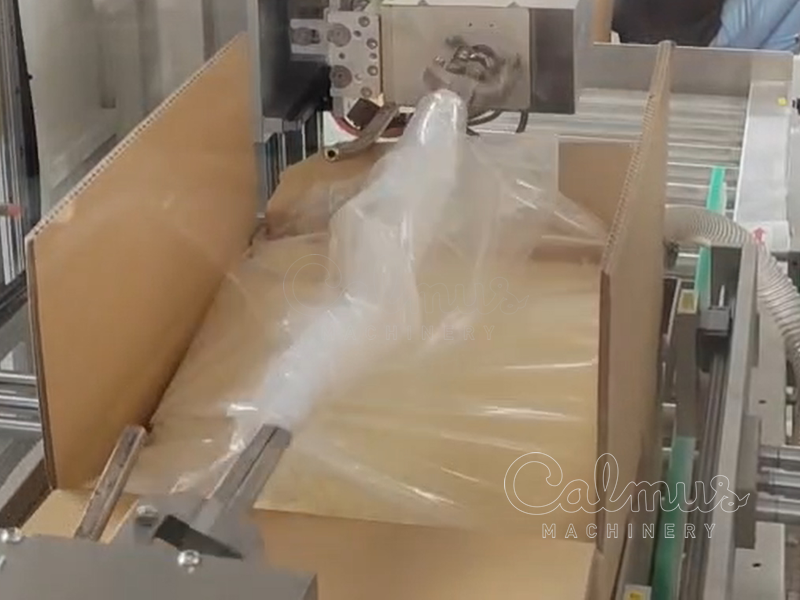

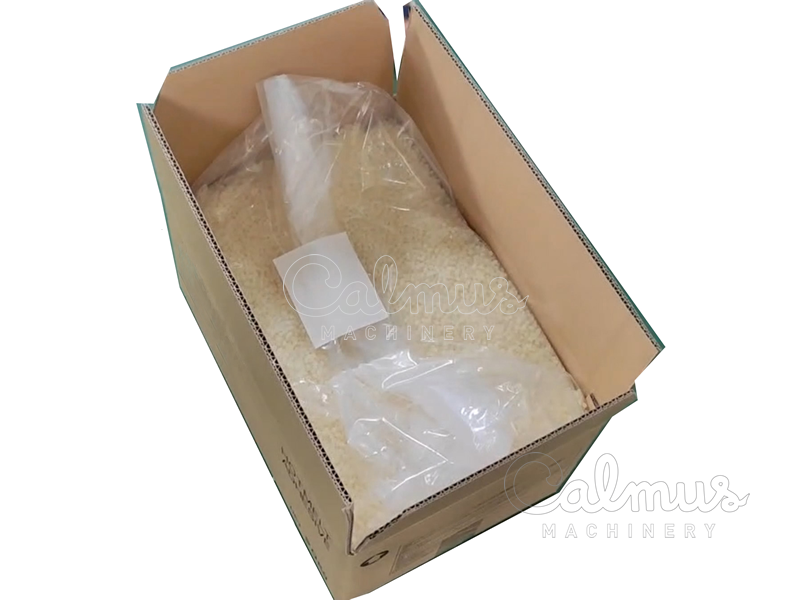

The bag uncuffer and roller is designed to roll up bag tops inside boxes after products are filled or loaded. This versatile equipment uncuffs the bag from the top flaps of the carton, stretches the bag opening, and applies a gentle vacuum to prevent ballooning. It then rolls up the top of the bag and applies a label to securely seal it, ensuring that products are well-packaged and ready for storage or shipment.
This bag uncuffing and rolling machine, when used with our poly bag inserter, is ideal for automatic bulk box packaging of non-food products like hot-melt glue granules, golf balls, and other items that do not require sealing. owever, businesses can also choose to integrate heat-sealing functionality for additional versatility.
Features:
1) Fully automated.
2) Easy to use. The HMI control system ensures straightforward operation.
3) A light vacuum is applied to the bag opening to prevent ballooning and ensure a tight and secure seal.
4) The main motion components are controlled by servo motors, with parameters adjustable via HMI settings. Users can preset different parameters for different products, reducing changeover time when switching to other sizes.
5) The uncuffing mechanism incorporates a suction cup system, making the uncuffing process more reliable.
6) A label can be applied to secure the rolled-up top of the bag.
Specifications:
Uncuffing and rolling capacity: 2-3 boxs/min
Film width: 460-840mm
Applicable box dimensions: L250-550*W200-400*H150-400mm, also can be customized
Power supply: single or 3 phase, 7 kW
Compressed air: 6-8 bar, 250 NL/min
Machine dimensions: L2,000*W1,440*1,825mm (for reference only)
We also offer poly bag inserters for placing liners in cases, ensuring a complete range of solutions to meet your packaging needs.
